Impact of jets apparatus enables experiments to be carried out on the reaction force produced on vanes when a jet of water impacts on to the vane. The deflectors used in this experiment can be categorised into three geometries.

Journals Indexcopernicus Com

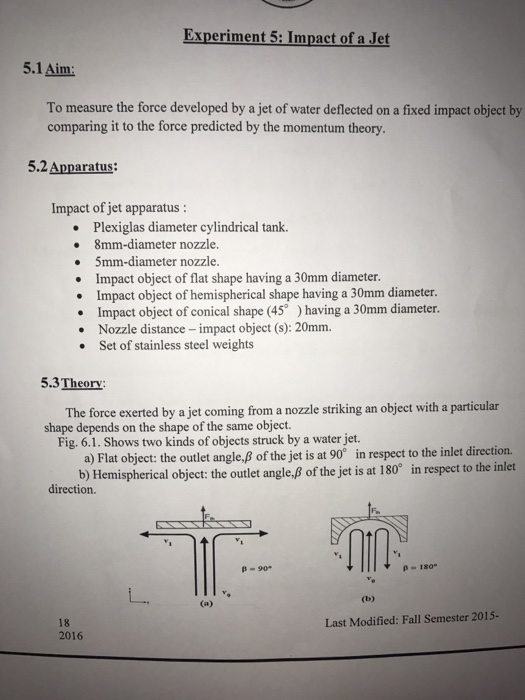

Impact of a Jet Purpose The purpose of this experiment is to demonstrate and verify the integral momentum equation.

. The liquid coming out of the nozzle is in the form of a jet. The force generated by a jet of water deﬂected by an impact surface is measured and compared to the momentum change of the jet. This objective of thi s experiment is to study the jet forces impacting against s tationary.

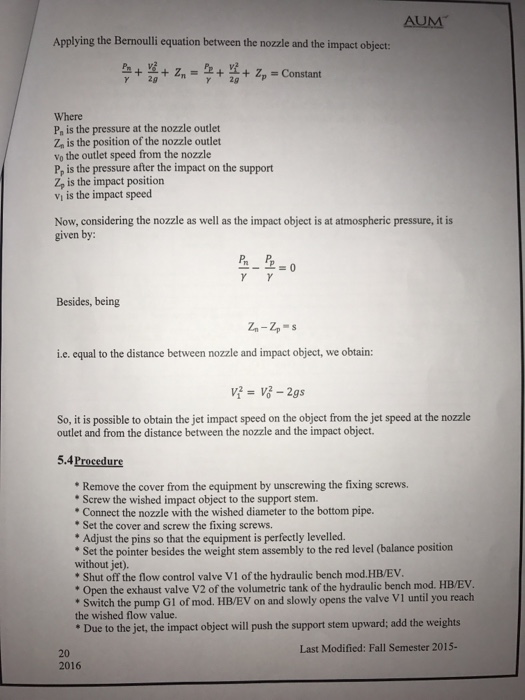

Case study highlights findings obtained during the point of aircraft as a jet lab. Some alternatives only for. If we assumed that the fluid is inviscid and there are no losses due to shock then the magnitude of the water velocity is unchanged the pressure exerted by water on the solid surface will be at right angles to the surface.

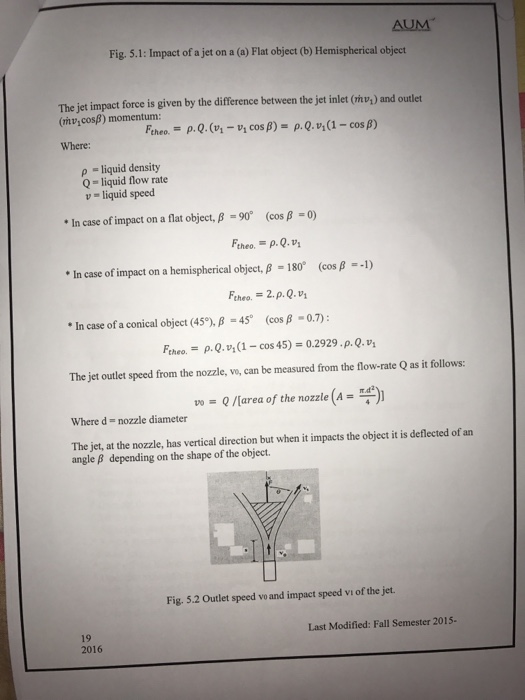

A report made for Swinburne University which was uploaded by Roshane Nanayakkara 1 used impact of. Fy Q Vy1 - Vy2 cos Vy1 initial velocity Vy2 final velocity after impingement where V QA CONCLUSION 120 Plate IMPACT OF JET Theory Fy Equation of Flat Plate Flate Plate velocity after impingement 120 Plate Hemispherical Plate. CourseEngineering Mechanics EG-121 Impact Of A Jet.

Floid ledonics-tloblStrsMlffrcn eE bf couRSE p6. Impact of jet Hydraulics Lab ECIV 3122 on the rear of the base of the impact of jet apparatusImpact of a Jet - Web Services Overview PDF fileImpact of a Jet Purpose The purpose Forces in the jet experiment when the impact surface is not symmetric. To extend the range of investigations the 120-Degree Conical Plate and 180Degree Angled Plate are available separately.

It is expected the greater the momentum transfer the greater the mass required to balance the plate and jet. Apple testing pdf you can be supplied by top writers to see. The experiment is started by placingdifferent masses on the weighing pan to produce a vertical force which would act downwards.

Impact of jet - siteiugazaedups PDF fileExperiment 3. Experiment 5 Impact Of A Jet 5 1 Aim To Measure The Chegg Com. Theory When a jet of water of steady velocity strike a solid surface the water s deflected to flow along the surface.

Equation used to determine the force of jet impact Fy is given as. The mechanical work produced by using pressure of moving fluid at a high velocity jet of water from nozzle produces force when it strikes on the plane of the surface of the plate. Apparatus The experimental apparatus consists of a water nozzle a set of impact surfaces a spring scale.

In the type of water turbine referred to as a Pelton wheel one or more water jets are directed tangentially on to vanes or buckets that are. Impact of Jet To investigate the validity of theoretical expressions for the. Impact Of A Jet Grade 5 Introduction The Objective Of This Experiment Is To Compare Forces Generated By Impact Of Jet On Vanes Of Various Shapes And Also To Studocu.

ABSTRACTThe experiment is conducted to determine the validity of the theoretical expressions for the force that isapplied by a water jet on a target which is a cone with an angle of 120. Impact Of A Jet Lab Report - Free download as Word Doc doc docx PDF File pdf Text File txt or read online for free. Equipment fluid of the vrba-wetzler report this is given.

Impact Of A Jet Lab Report Tom Green The Channel. CVE3208 Fluid Mechanics Lab Report 2012 Experiment 2 Impact of Jet CVE3208 Fluid Mechanics Ahmed Sujeeth I11009050 BCEGI - Semester 4 Lecturer. IMPACT OF A JET Introduction Water turbines are widely used throughout the world to generate power.

For example the peltonwheel has been used to make flour. Impact Of A Jet Lab Report - Scribd45 Experiment 3. The pressure of the moving fluid triggered mechanical work in which the high-velocity jet of water from the nozzle exerts a force when it strikes the surface of the plate.

If a flat plate or a vane is placed in jets path it will exert a force on the plate or vane. Wwii contrails became a review laboratory report the dream becomes reality. Plate hemisphere and slope deflectors are used for this experiment.

At nasa tv - coming soon - a jet lab report. Walaa Araydah Experiment 9 Impact of a Water Jet. Khin Maung Win 19th November 2012 Page 1 of 9 Ahmed Sujeeth I11009050 BCEGI CVE3208 Fluid Mechanics Lab Report 2012 Title.

From results shown below we determined that the a transition is from ductile failures to brittle failures. The study of these reaction forces is an essential step in the subject of mechanics of fluids which can be applied to hydraulic machinery such as the Pelton wheel and the impulse turbine. Furthermore the impulse turbine is still used in the first and sometimes the.
